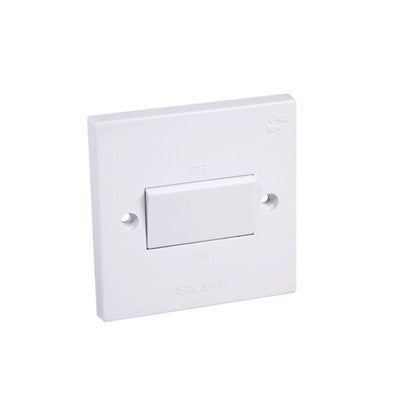

10A Fan Switch 3 Pole Isolator AXMF13P
10A Fan Switch 3 Pole Isolator AXMF13P
Features & Benefits
10Amp (X rated) suitable for inductive load
Supplied with M3.5 x 25mm fixing screws
Minimum Depth - Metal/Plastic/PVC Box 16mm
Terminal Capacity - 3x1.5mm²
Three Pole Isolators provide isolation of fans for maintenance or repair without isolation of complete circuit
Safety Information
IMPORTANT - Before undertaking any work on or maintenance of fitting:
Switch off power supply and allow sufficient time to cool before handling
Do not dispose of decommissioned fitting in household waste
Dispose of fitting in the appropriate section of your local civic amenity site or recycling centre only
Technical Specifications
General Information
Colour/Finish
Dimensions (mm)
White
86 x 86 x 9mm
Front Plate Depth (mm)
Fixing Centre (mm)
Minimum Box Depth (mm)
9mm
60.3mm
16mm
Electrical
Rated Operating Voltage (v)
Terminal Capacity (mm²)
240v
3x1.5mm²
Rated Load Capacity (Amps)
Frequency (Hz)
Kite Mark / ASTA
10A
50/60Hz
Asta
Performance Data
Switch (1 / 2) etc
1 Gang
Construction
Body
Urea Formaldehyde
