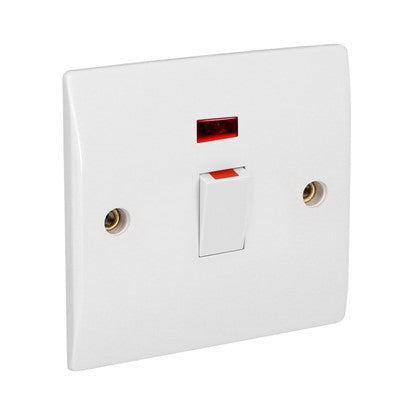

Flat Moulded 13Amp Fused Connection Unit with Neon FWSPN

 Features & Benefits
 BS3676 AC only
 Supplied with M3.5x30mm Fixing Screws
 Safety Information
 IMPORTANT - Before undertaking any work on or maintenance of fitting:
Switch off power supply and allow sufficient time to cool before handling
 Do not dispose of decommissioned fitting in household waste
 Dispose of fitting in the appropriate section of your local civic amenity site or recycling centre only
 Technical Specifications
 General Information
 Colour/Finish
 Dimensions (mm)
 White
 86 x 86 x 13mm
 Front Plate Depth (mm)
 Fixing Centre (mm)
 Minimum Box Depth (mm)
 13mm
 60.3mm
 25mm
 Electrical
 Rated Operating Voltage (v)
 Terminal Capacity (mm²)
 240v
 2.5mm²
 Rated Load Capacity (Amps)
 Frequency (Hz)
 13A
 50/60Hz
 Approvals
 Kite Mark / ASTA
 BS3676-BSEN60669
 KM73110
 Performance Data
 Construction
 Body
 Warranty (Years)
 Other
 Urea Formaldehyde
 25
