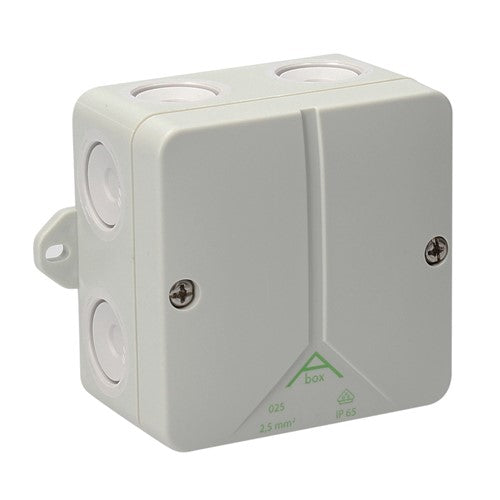

Spelsberg IP65 moulded Grey PVC Box 80x80x52mm ABOX25
Spelsberg IP65 moulded Grey PVC Box 80x80x52mm ABOX25
Regular price
£6.99 GBP
Regular price
Sale price
£6.99 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Features
IP65 VDE Approved (IP54 when used with Male Adaptors)
Rear side featuring teeth for secure placement on Cover fastener with 2 stainless the subsurface
Easy cable feed through high level terminals
Comes with stainless steel V2A cover screws and blanking plug M25, seal range 9 - 18.5 mm
Isolate protection according to VDE 0106
Screw terminal, 5-pole - 2.5/4 mmmm²(4 x 1.5mm²/ 4 x 2.5mm²/ 3 x 4mm²)
Ample wiring space and rugged construction for quick installation with the use of membrane entry
Mounting points for attaching the Abox terminal in 2 different positions
Cover fastener with 2 stainless steel cross slot screws. Sealing via Abox PST sealing set in accessories
Front now featuring 3 x M20 inlets for Abox(-i) m 040
Technical Specification
General Information | |
Ambient Temperature (°C) | -25-40 |
Approvals/Certifications | VDE, CE |
Barcode | 5027825140969 |
Body material | PVC |
Class | II |
Dimensions (mm) | 80*80*52 |
Ingress Protection (IP) | IP65 |
Knockouts | 2-2-2-1 (7xM20 Self Entry Membrane) |
Product Colour/Finish | Grey |
Rated Cross Section (mm) | 2.5 |
Rated Insulation Voltage AC (V) | 690 |
Relative Humidity | 50-95 |
Specification | EN 60529 / DIN VDE 0470-1 |
Warranty Period (Years) | 1 |
Weatherproof (Y/N) | Y |
Weight (g) | 70 |
