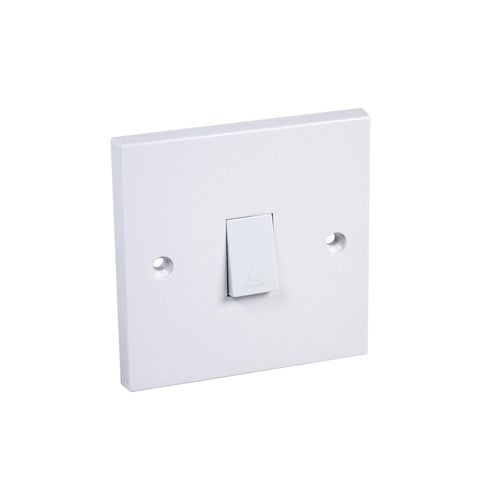

Switch Intermediate 10Amp CEDSINT
Switch Intermediate 10Amp CEDSINT
Regular price
£2.99 GBP
Regular price
Sale price
£2.99 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Features
BS3676 BS EN 60669
Minimum box depth: 16mm
Licence No. KM73110
Rated load capacity: 10A
Terminal capacity: 1.5mm²
Supplied with M3.5 x 30mm Fixing Screws
Fireproof square edge moulded classic design
White Urea-formaldehyde Construction
Single Gang
Dimensions: 86 x 86 x 9mm
Technical Specification
| General Information | |
| Applications | Domestic, Commercial |
| Approvals/Certifications | CE, UKCA, Kitemark |
| Barcode | 5027825703614 |
| Body material | Urea Formaldehyde |
| Colour/Finish | White |
| Control (1 / 2 Way) | 1 |
| Dimensions (mm) | 86*86*9 |
| Fixing Centre (mm) | 60.3 |
| Frequency (Hz) | 50/60 |
| Front Plate Depth (mm) | 9 |
| Input Voltage (Hz) | 220-240 |
| Kitemark/Asta | KM73110 |
| Minimum Box Depth (mm) | 16 |
| Product Colour/Finish | White |
| Rated Load Capacity (Amps) | 10 |
| Switch (1 / 2) etc | 1 |
| Warranty Period (Years) | 25 |
